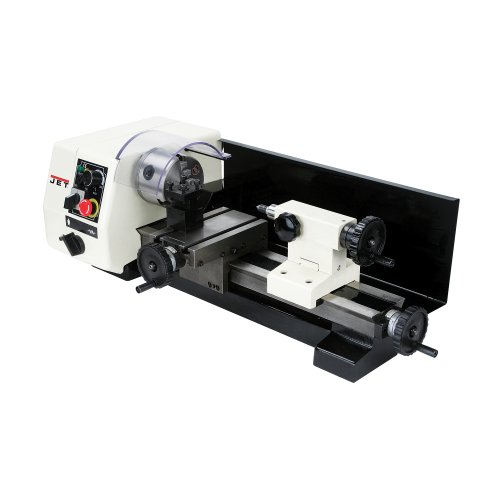

JET JHL-610 Hobby Lathe
List Price: $599.00 Our Price: $579.00 You Save: $20.00 (3.3%) | Availability: | Usually ships in 1 to 2 days (as of 5:28 AM CT - detail) |
Electronic Variable Speed 100-2000RPMOver-load protectionLead screw is protected under the bed with auto-feed mechanismThree jaw chuckDead center MT1
Product Description
Features-• Electronic Variable Speed 100-2000RPM • Over-load protection • Leadscrew is protected under the bed with auto-feed mechanism • Three jaw chuck • Dead center MT1 • Wrench Set • Oil Can • Metal cuttings/shavings/coolant tray inbuilt • Chuck cover (guard) with a automatic off/on switch for safety feature • Cross-slide has an industrial-style bolt-down heavy cast-iron tool holder with calibrated feed • Tailstock has an MT-1 and is made from cast-iron • Headstock center (MT-2) and drill chuck (MT-1) are included as a standard equipment • Capable to cut metric thread 0.5-1.25mm pitch • Capable to cut inch thread 16-24 TPI • Gear change kit is included as a standard equipmentSpecifications-Swing over Bed: 5-1/2" Distance Between Centers: 9-3/4" Spindle Bore: 3/8" Spindle Mount: MT2 Spindle Taper W/ Sleeve: MT-2 Number of Spindle speeds: Electronic Variable Speed Range of Spindle Speeds (RPM): 100 - 2000 Number of Inch Threads: 5 Range of Inch Threads (TPI: 6-24 Number of Metric Threads: 5 Range of Metric Threads: 0.5-1.25 Max Tool Size: 3/8"-shank Cross Slide Travel: 2" Carriage Travel: 9-3/4" Taper in Tailstock Spindle: MT-1 Motor: 150W Family Description: JET JHL-610 Hobby Lathe Overall Dimensions: 24" x 11.75" x 8.5" Height: 8.5" Width: 11.75" Length: 24" Net Weight: 50 lbs.2 Year Warranty
|
