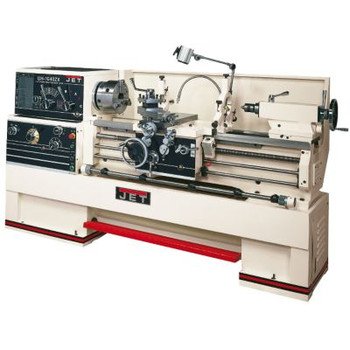

Jet 321930 GH-1640ZX 16-Inch Swing by 40-Inch between Centers 230/460-Volt 3 Phase Large Spindle Bore Metalworking Lathe
List Price: $20,189.99 Our Price: $17,399.00 You Save: $2,790.99 (13.8%) | Availability: | Usually ships in 24 hours (as of 12:37 AM CT - detail) |
7.5HP, 3Ph, 230/460V motor (Prewired 230V) for optimal turning power3-1/8-inch spindle hole; 16" Swing x 40" Centers for large turning applications12 spindle speeds ranging from 25-1800 RPM for a wide variety of turning applicationsChrome molybdenum headstock gears are hardened, ground, and shavedUniversal gearbox allows inch, metric, diametral, and module pitch threads, no change gears required
Product Description
The 16in. ZX Series large spindle bore lathe is designed exclusively by with a 3 1/8in. bore spindle supported by two tapered and one ball bearing. Chrome molybdenum headstock gears are hardened, ground and shaved. Universal gearbox allows inch, metric, diametric and module pitch threads, no change gears required. Carriage features one-shot lubrication and Turcite B on bed sliding surfaces. Stand Included: Yes, HP: 7.5, Volts: 230 / 460 pre-wired 230, Speed (RPM): 25 - 1,800, Spindle Speeds (qty.): 12, Width Between Centers (in.): 40, Carriage Travel (in.): 35, Thread Cutting (in.): 1 5/8 - 72, Thread Cutting (mm): .05 - 20, Dimensions L x W x H (in.): 98 x 40 x 48
|
